Conductive & Insulating Profiles
Profiles integrating copper conductive elements and plastic insulation within a single extruded structure.

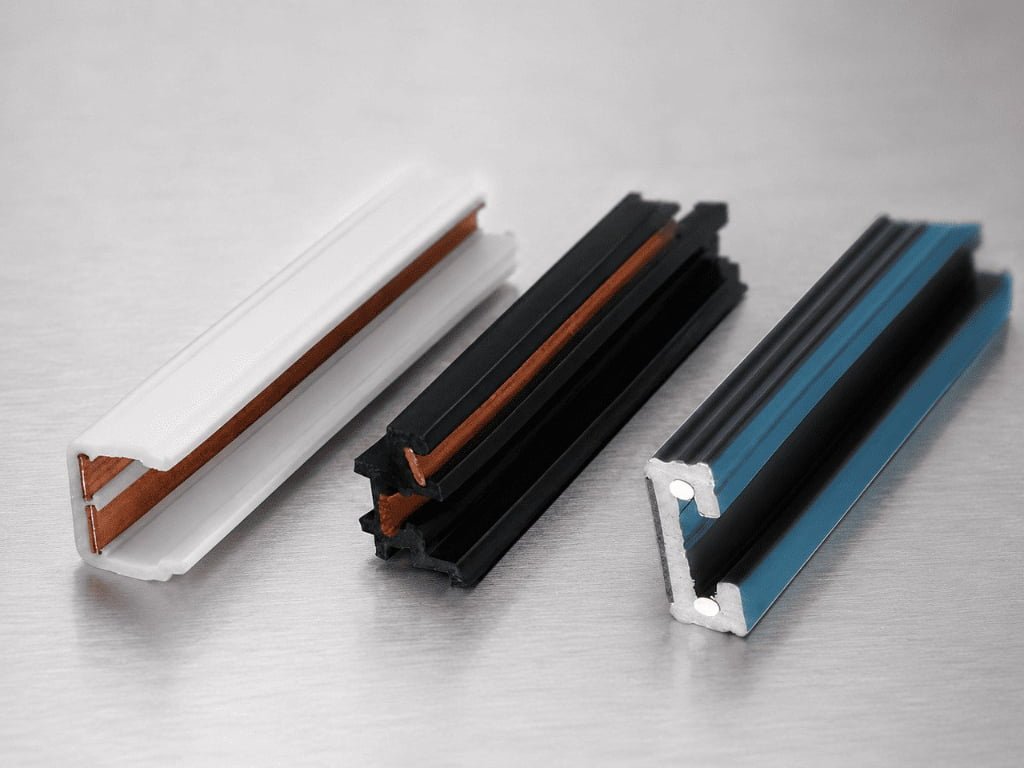

Copper-Plastic Co-extrusion
OKAWA provides copper-plastic co-extrusion manufacturing that integrates copper conductive elements with plastic profiles in a continuous extrusion process. Based on customer drawings, samples or functional requirements, we develop profiles that combine electrical conductivity, insulation and structural functions within a single component. From profile and material evaluation to tooling, sampling and mass production, we support the development of application-specific copper-plastic composite profiles.
Compatible Materials
Applicable raw materials for this process
- PVC
- ABS
- Copper
Application Scenarios
Where This Capability Delivers Value
Electrical Connection Components
Custom composite profiles for products requiring integrated electrical contact, power transmission or connection functions.
Lighting System Components

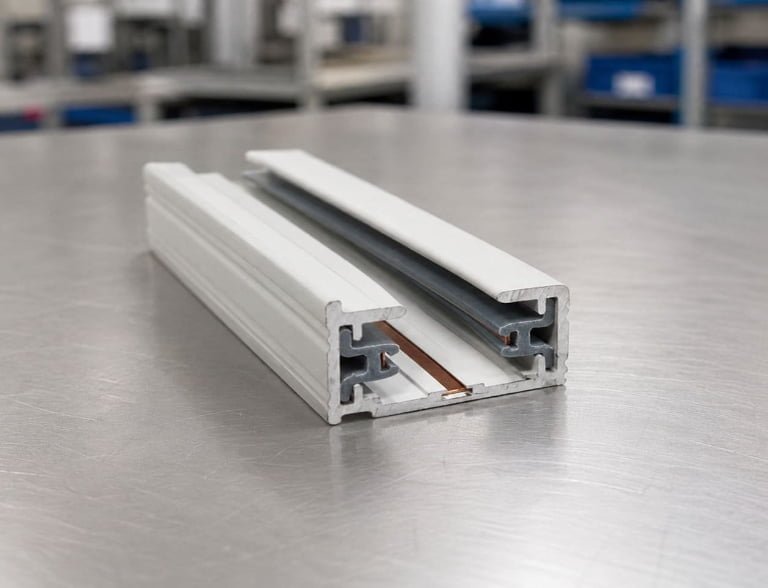

Copper-plastic profiles for lighting tracks, linear lighting systems and other electrical lighting structures.
Display & Equipment Components
Integrated conductive profiles for display systems, equipment structures and other applications requiring power distribution within a plastic profile.
Custom Functional Profiles
Application-specific profiles combining conductive, insulating and structural functions according to customer designs and requirements.
Manufacturing Advantages
Why Our Process Stands Apart
Integrated Conductive & Insulating Structure
Integrates copper conductive elements and plastic insulation into a single composite profile.
Reduced Assembly Requirements
Co-extruded construction can reduce separate component assembly and simplify downstream manufacturing.
Custom Cross-Section Development
Copper position, plastic profile geometry and functional structure can be developed according to customer requirements.
Multi-Function Integration
Conductive, insulating and structural functions can be combined within one continuous profile.
Production-Oriented Development
Tooling, sampling and process validation support the transition from profile design to repeatable mass production.
Process Flow
Step-by-Step Production Sequence
A structured, repeatable production process ensures consistent dimensional accuracy and surface quality across every batch.
Step 01
Requirement Review
Review customer drawings, samples, electrical requirements, profile dimensions and application conditions
Step 02
Structure & Material Evaluation
Evaluate plastic material, copper configuration, conductor position, insulation structure and extrusion feasibility.
Step 03
Profile & Tooling Development
Develop the profile and extrusion tooling according to the confirmed composite structure.
Step 04
Copper Preparation
Prepare copper conductive elements according to the required dimensions and profile configuration.
Step 05
Co-extrusion Processing
Integrate copper elements with the plastic profile through a controlled continuous co-extrusion process.
Step 06
Sample Validation
aluate dimensions, copper positioning, profile appearance and relevant functional requirements before production approval.
Step 07
Mass Production
Establish controlled process parameters for repeatable copper-plastic composite profile production.
Step 08
Secondary Processing & Delivery
Complete required cutting, punching, printing, assembly, inspection and packaging before shipment.
Secondary Operations
Finish-to-Ship Post-Processing Services
Streamline your supply chain -- we deliver fully finished parts ready for direct assembly or shipment.
- Cutting
- Punching
- Surface Film Lamination
- Laser Marking
- Silk Printing
- Pad Printing
- Assembly
- Custom Packaging
Engineering Considerations
Technical Factors to Evaluate
Copper Positioning
Copper position and geometry should be evaluated together with the plastic profile structure to support stable co-extrusion and subsequent assembly.
Plastic Material Selection
Plastic material selection should consider insulation, mechanical, environmental and application requirements.
Cross-Section Design
Profile geometry, wall thickness and copper placement should be evaluated as an integrated structure rather than as separate components.
Electrical Requirements
Current carrying, contact and insulation requirements should be identified during project evaluation.
Secondary Processing
Cutting, punching, connection features and assembly requirements should be considered during profile development.
