Extruded Plastic Profile with Precision Cutting, Punching and Assembly
- Challenges Resolved
- 5
- Processes Applied
- 2
- Production Steps
- 7
01 · Project Background
Understanding the Client's Requirements

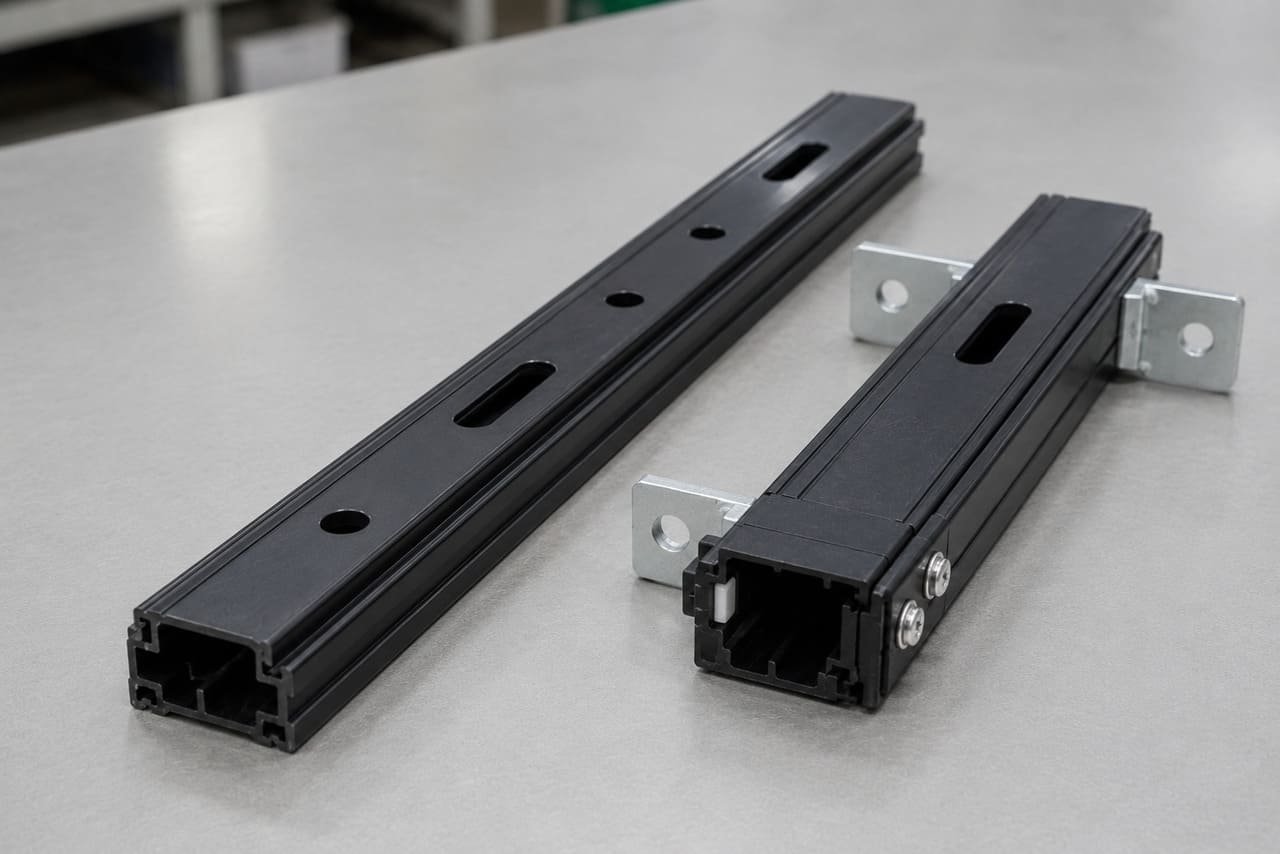

A customer required an extruded plastic profile that could be delivered ready for downstream assembly rather than as continuous extrusion lengths. In addition to profile extrusion, the component required controlled cut lengths, accurately positioned holes and slots, surface identification and final assembly operations according to the customer's drawing.
02 · Manufacturing Challenges
What Made This Project Technically Demanding
-
Maintaining consistent cut length across batch production
-
Controlling hole and slot positions according to assembly drawings
-
Preventing profile deformation or surface damage during secondary processing
-
Coordinating multiple processing steps within one manufacturing workflow
-
Maintaining finished-component consistency before final packing
03 · OKAWA Solution
How We Engineered the Answer
OKAWA integrated extrusion and secondary processing into a coordinated manufacturing workflow based on the customer's finished-component drawing. After extrusion, profiles were cut to the required lengths and processed with the specified holes, slots and other features. Printing, marking, protective film application or assembly could be incorporated where required by the project. Inspection points were arranged around critical dimensions and processing features before final assembly and packaging, allowing the customer to receive components prepared for the next stage of production rather than unprocessed extrusion lengths.
04 · Production Flow
Step-by-Step Manufacturing Process
-
Step 01
Drawing Review
Identify cut lengths, hole positions, slots, markings and assembly requirements.
-
Step 02
Profile Extrusion
Produce the base profile according to the confirmed drawing and material requirements.
-
Step 03
Precision Cutting
Cut extruded profiles to the specified finished lengths.
-
Step 04
Punching / Machining
Process holes, slots and other required features according to the drawing.
-
Step 05
Printing / Marking
Apply identification, printing or marking where required.
-
Step 06
Assembly
Combine the processed profile with related components when the project requires assembled delivery.
-
Step 07
Inspection & Packaging
Inspect critical processing features and prepare finished components for shipment.
05 · Delivery Results
Final Outcomes & Project Value
The customer received processed components prepared for downstream assembly instead of standard extrusion lengths. By combining extrusion, cutting, punching, marking, assembly and packaging within one coordinated supply process, the project reduced the number of separate manufacturing steps the customer needed to manage.
